Yamaha CS-50 / CS-60 / CS-80

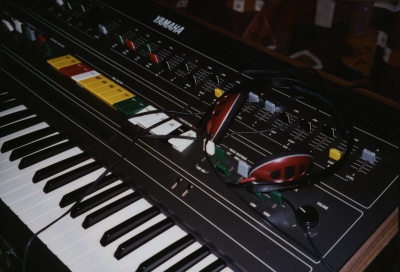

My CS-60 (Photo: Birgit Haible)



Links

ptk's extensive CS-synthesizers site (includes most of the CS-80 service manual) The Old Crow's repair tips for CS-Synthesizers



Technical Details

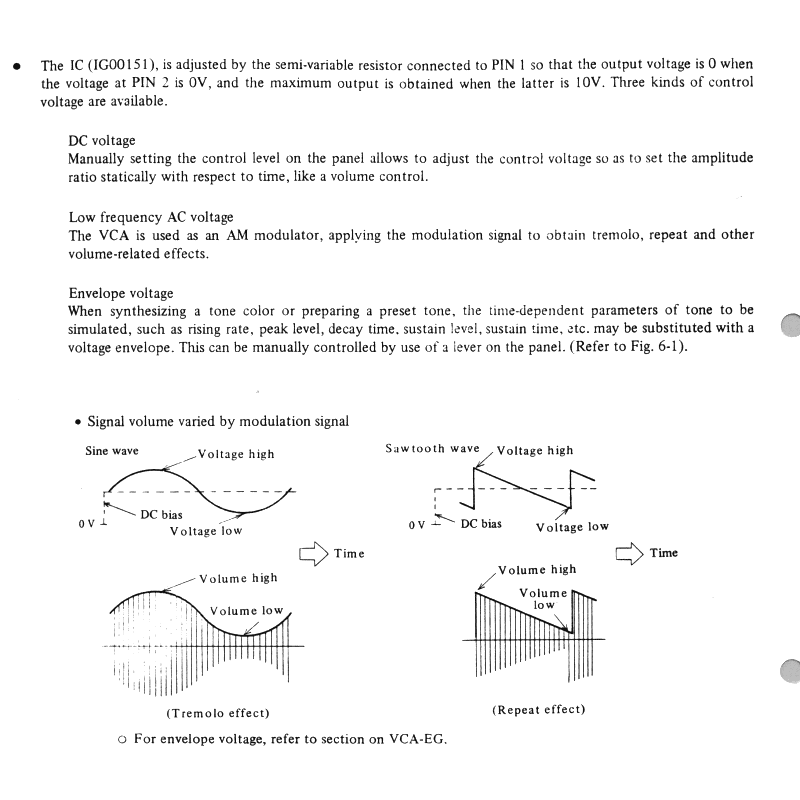

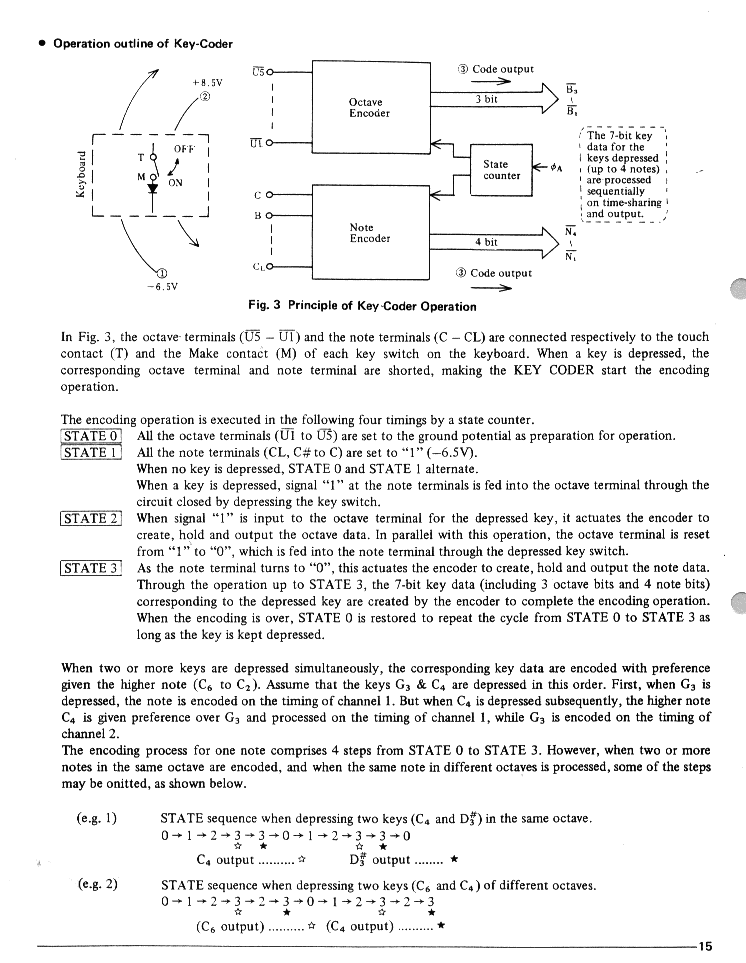

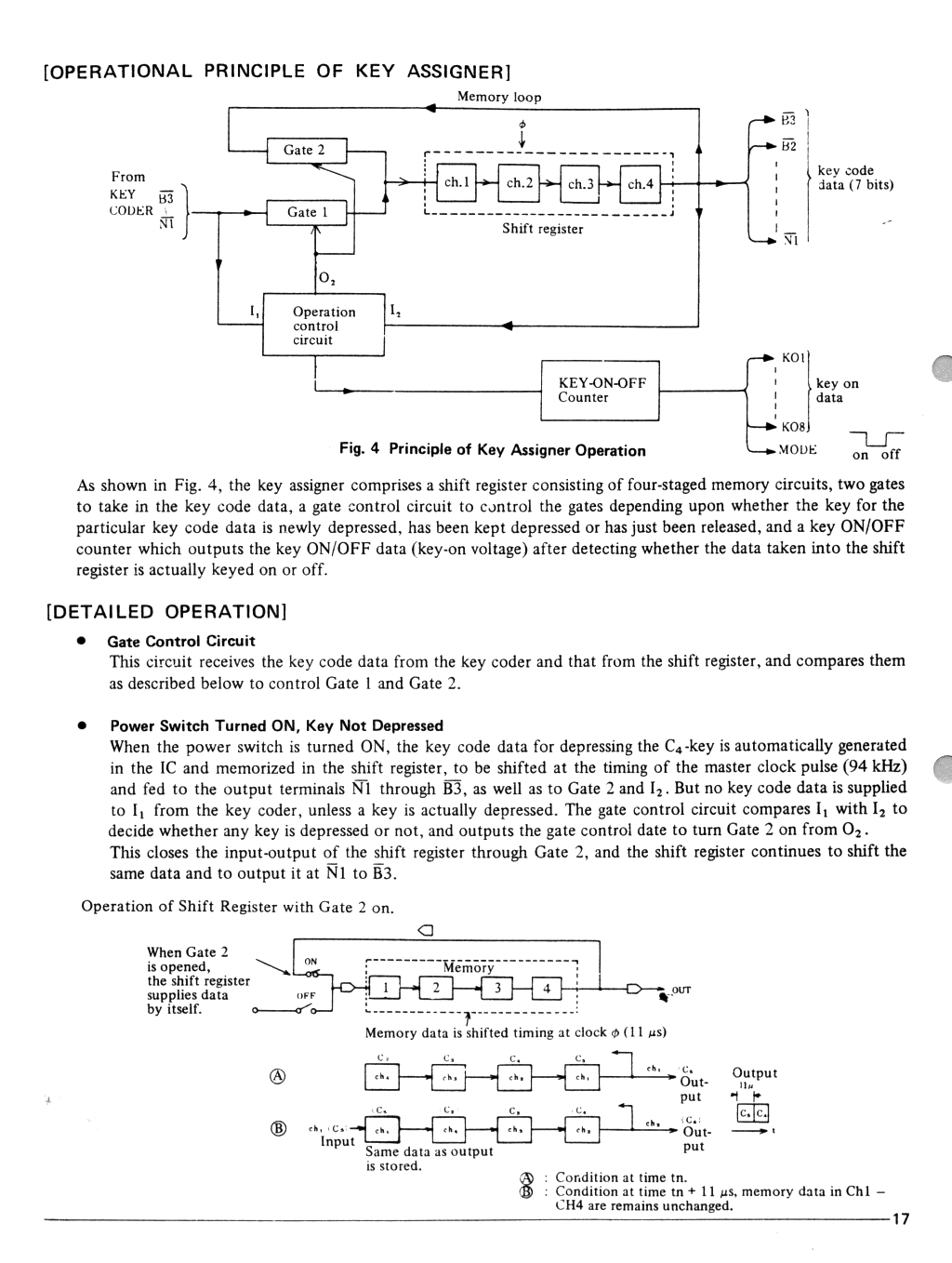

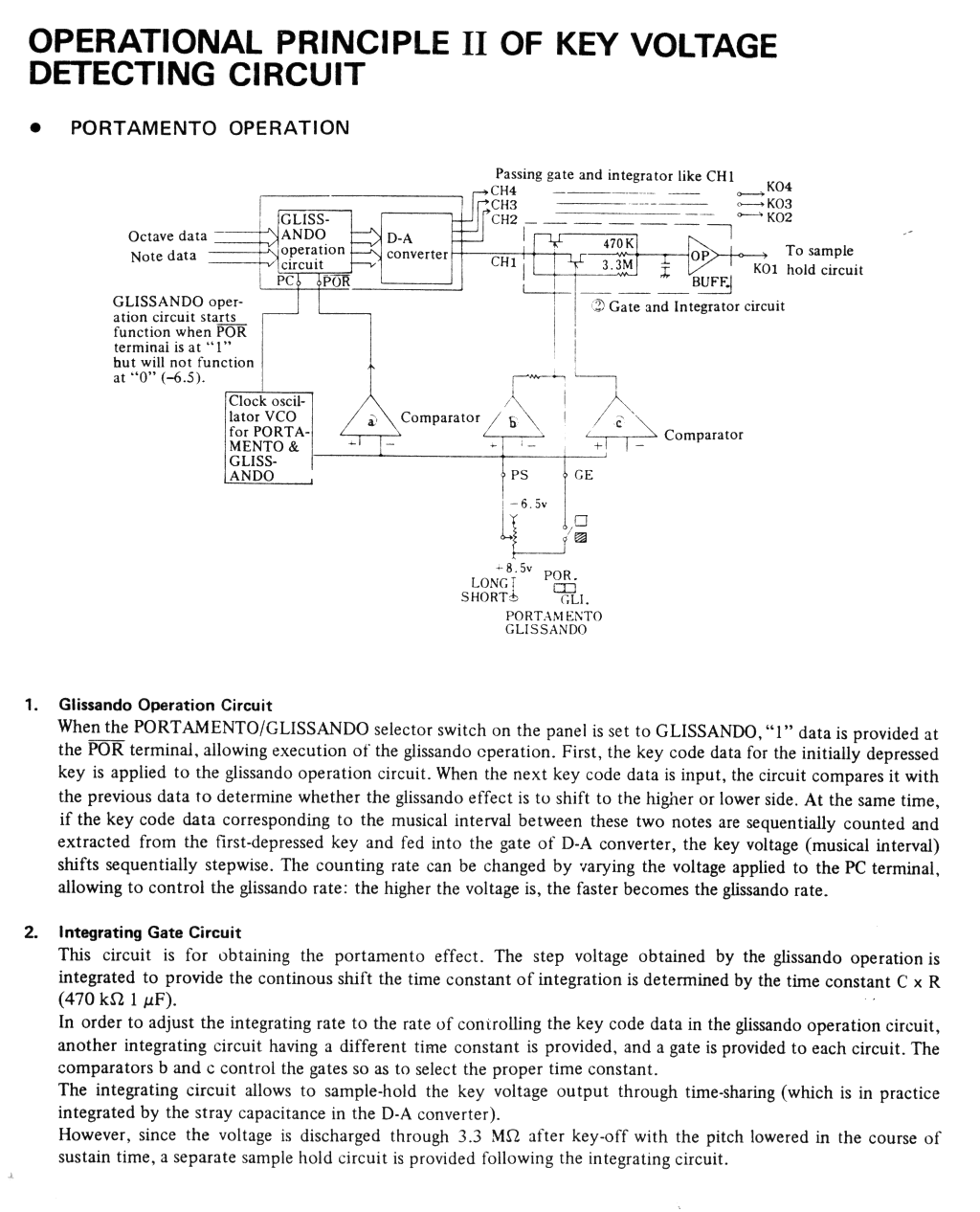

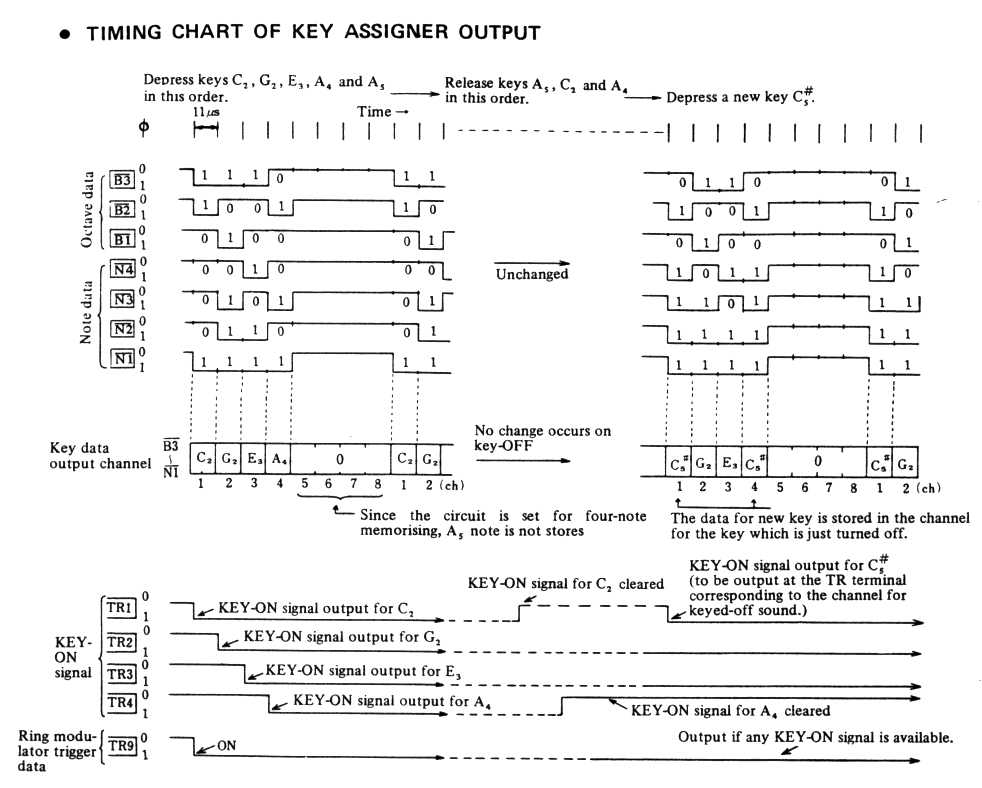

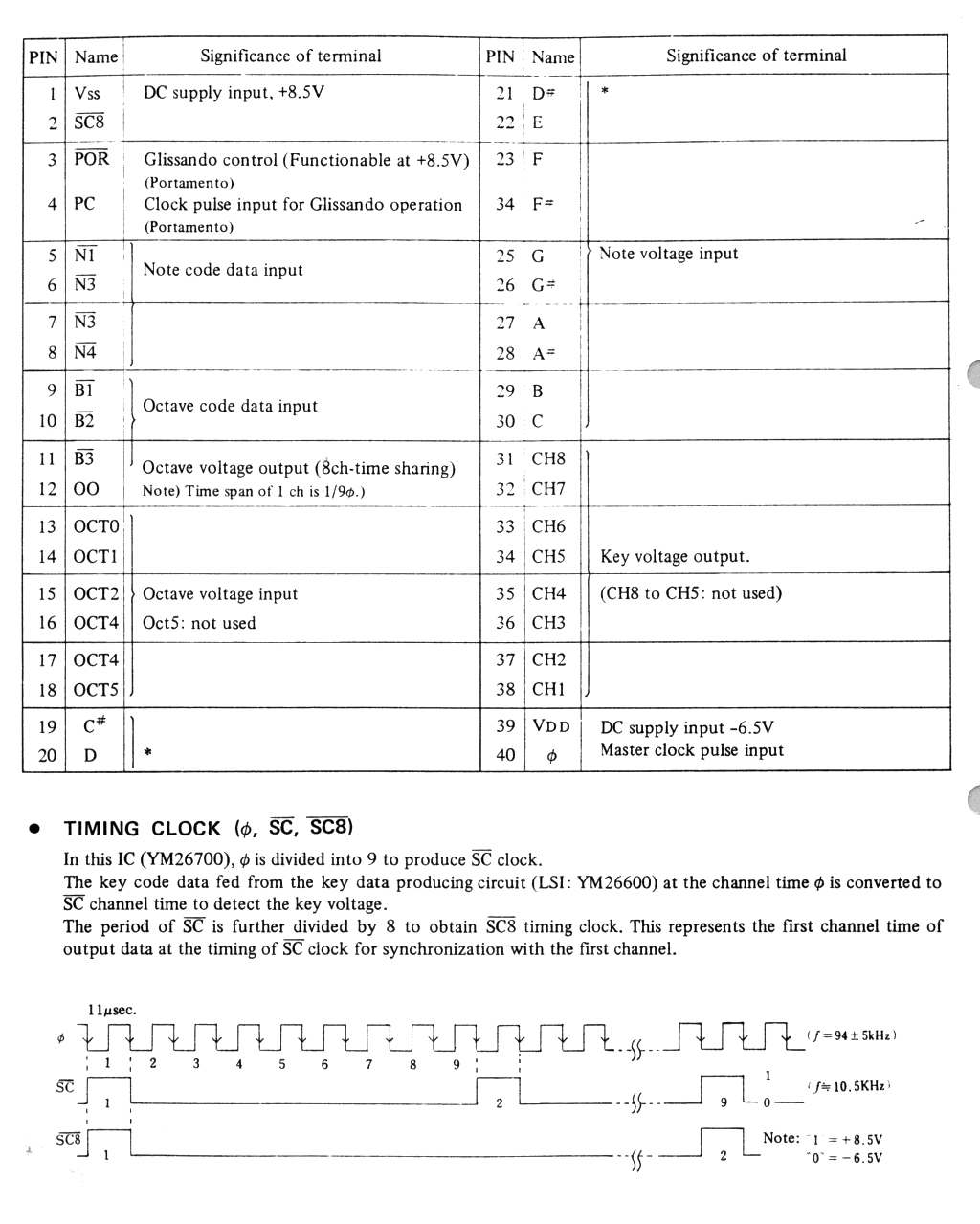

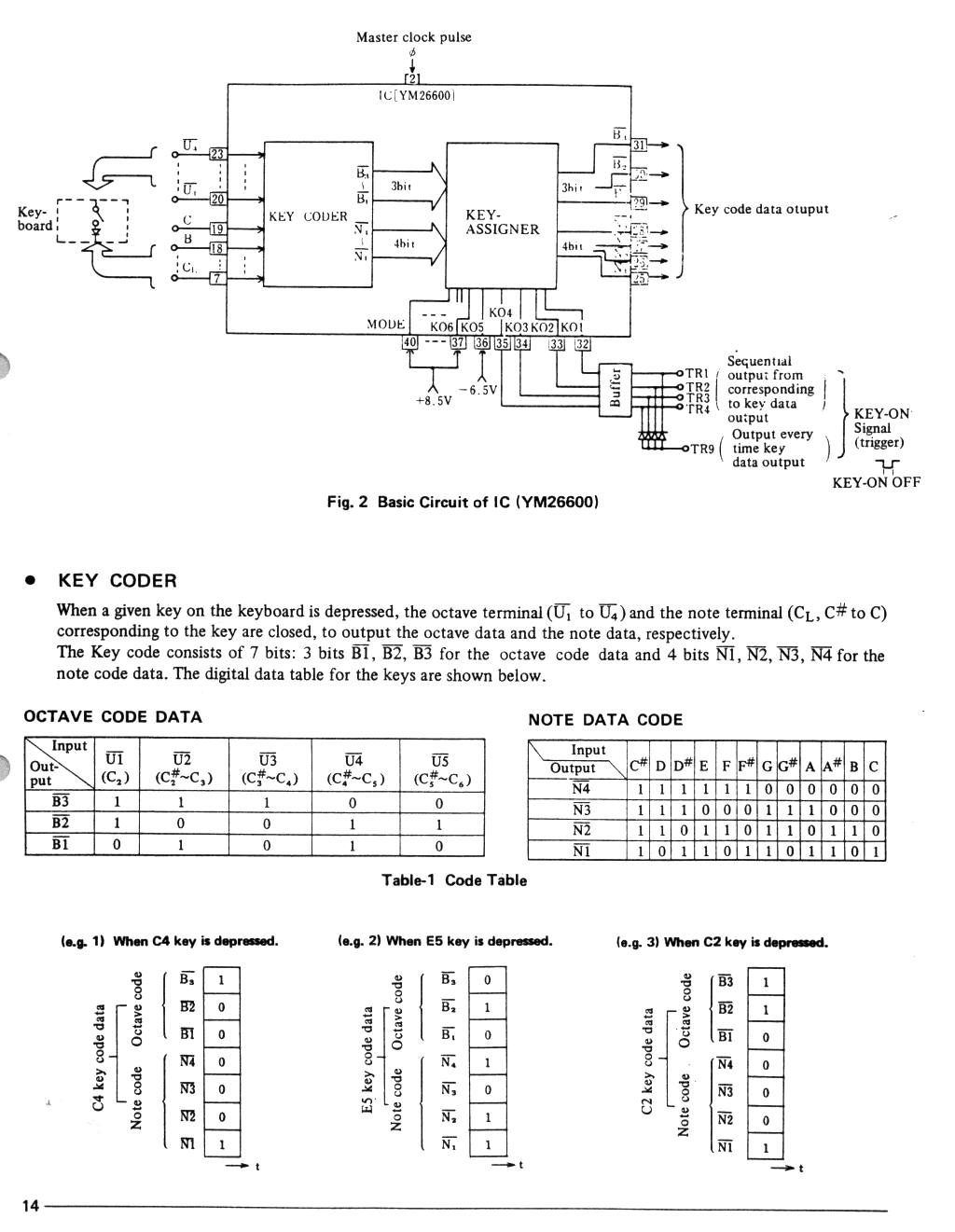

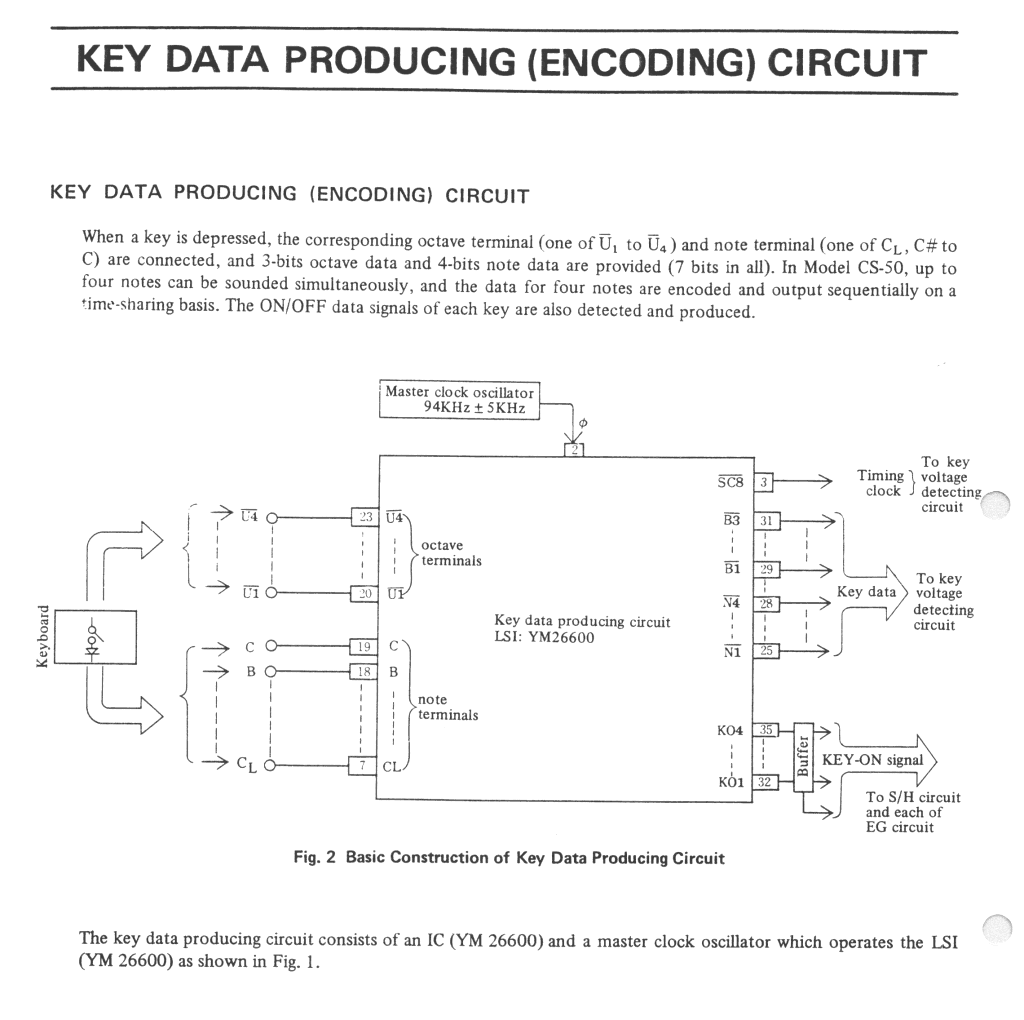

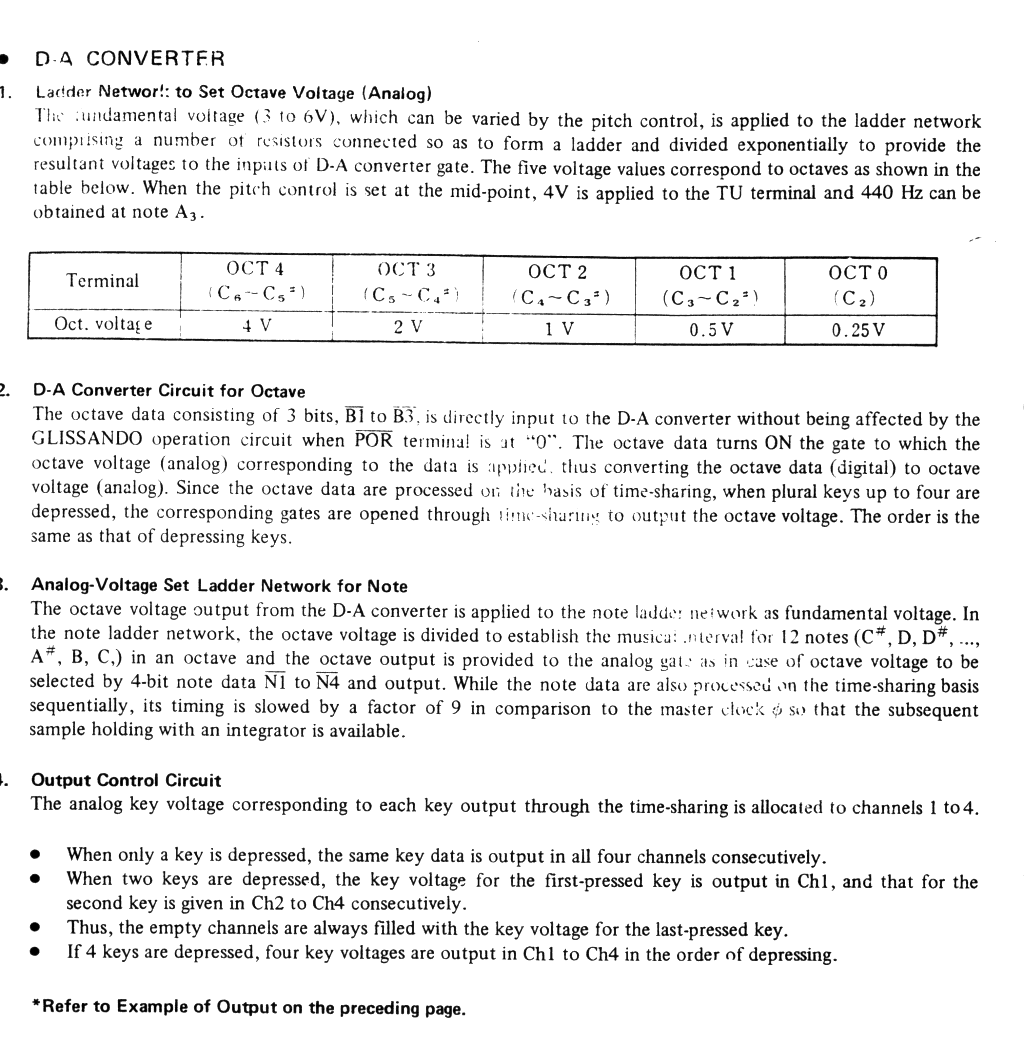

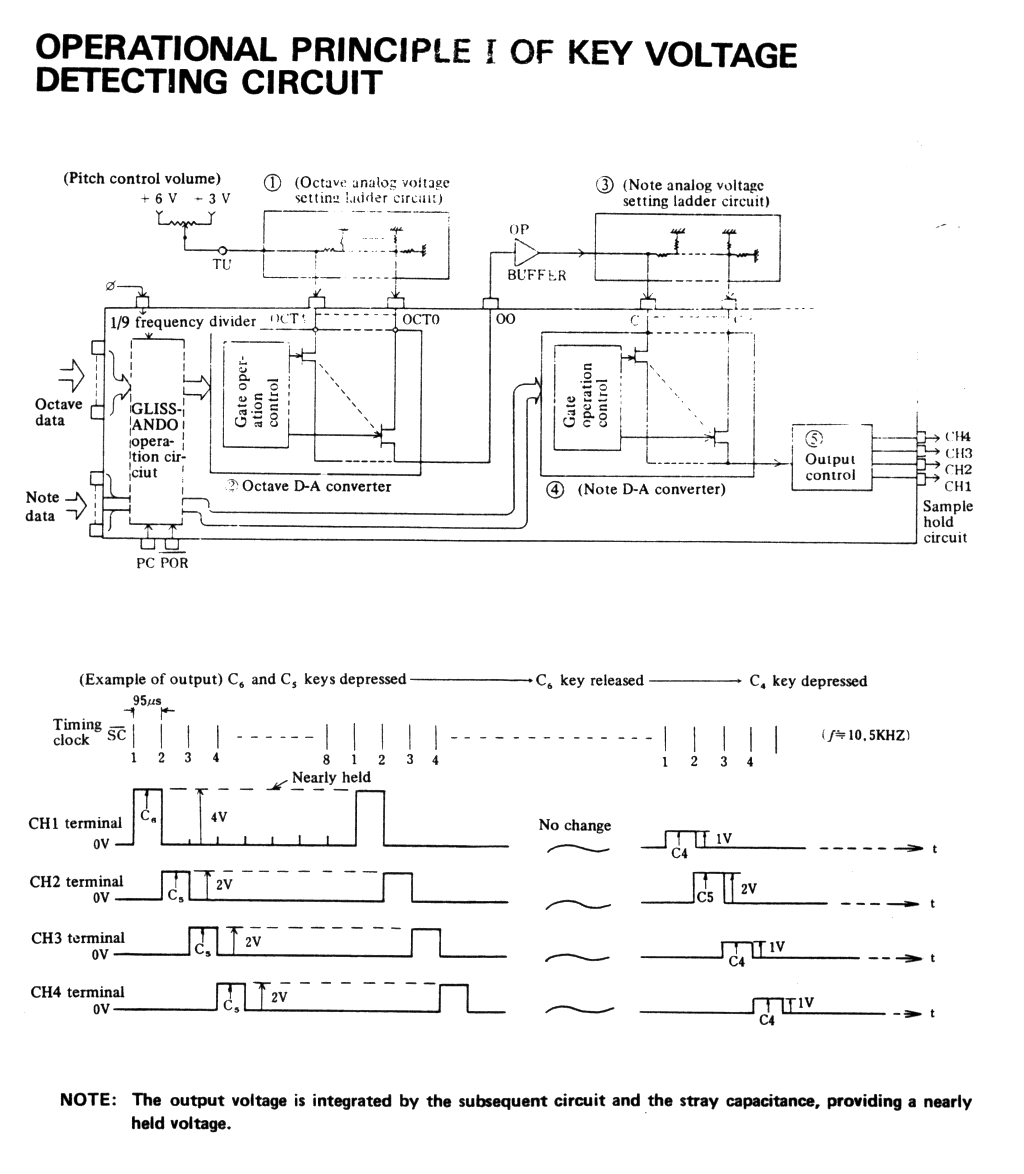

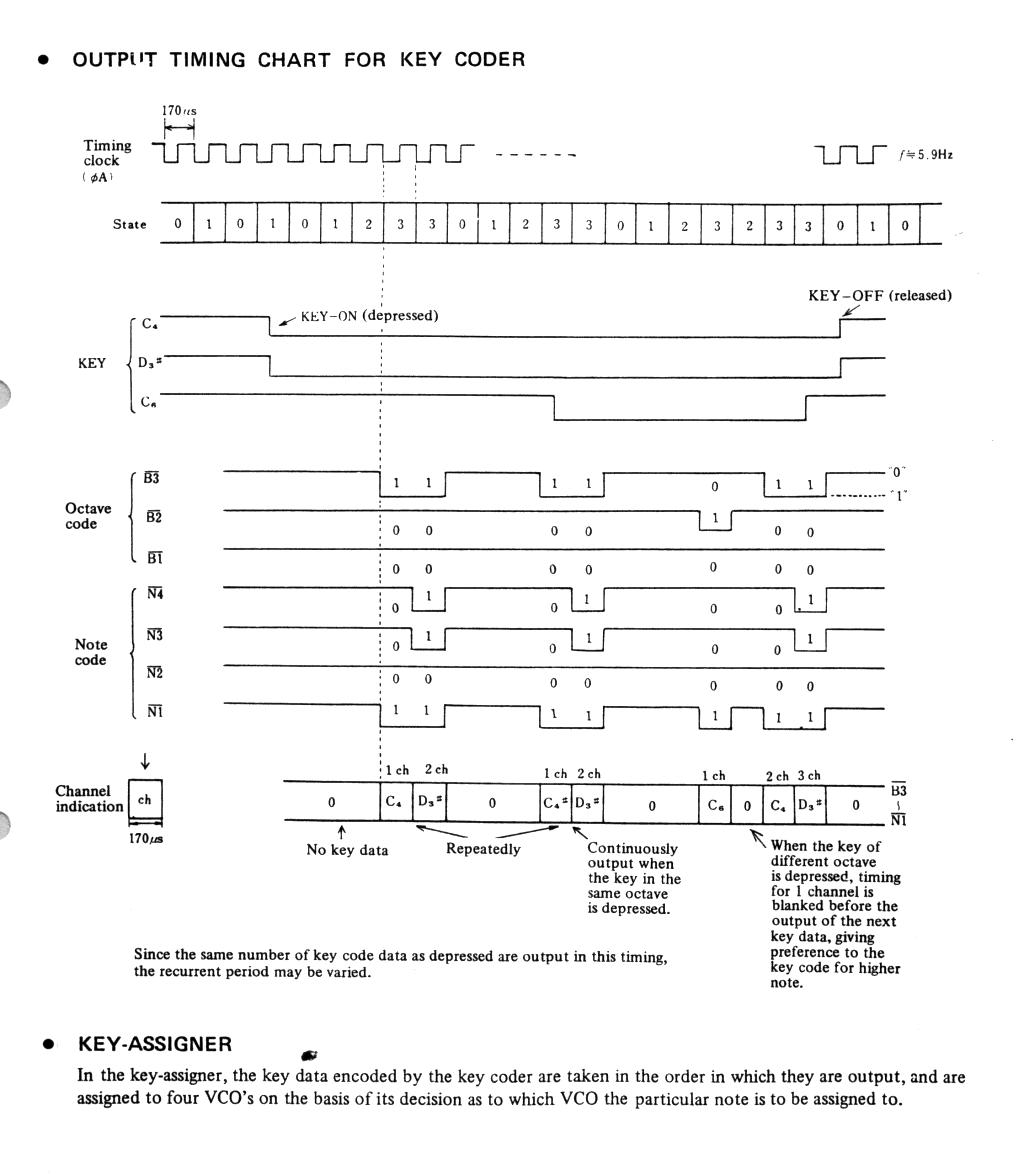

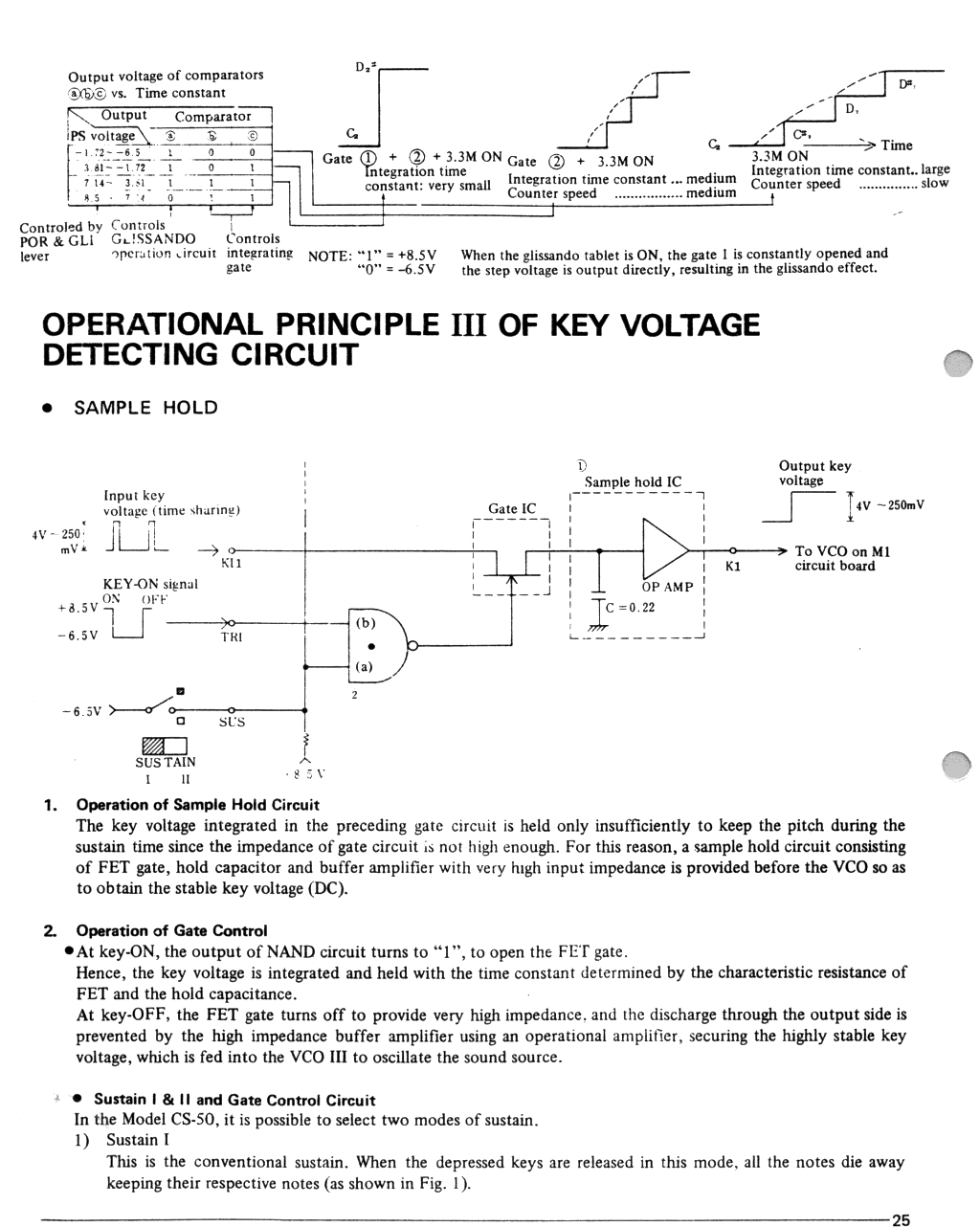

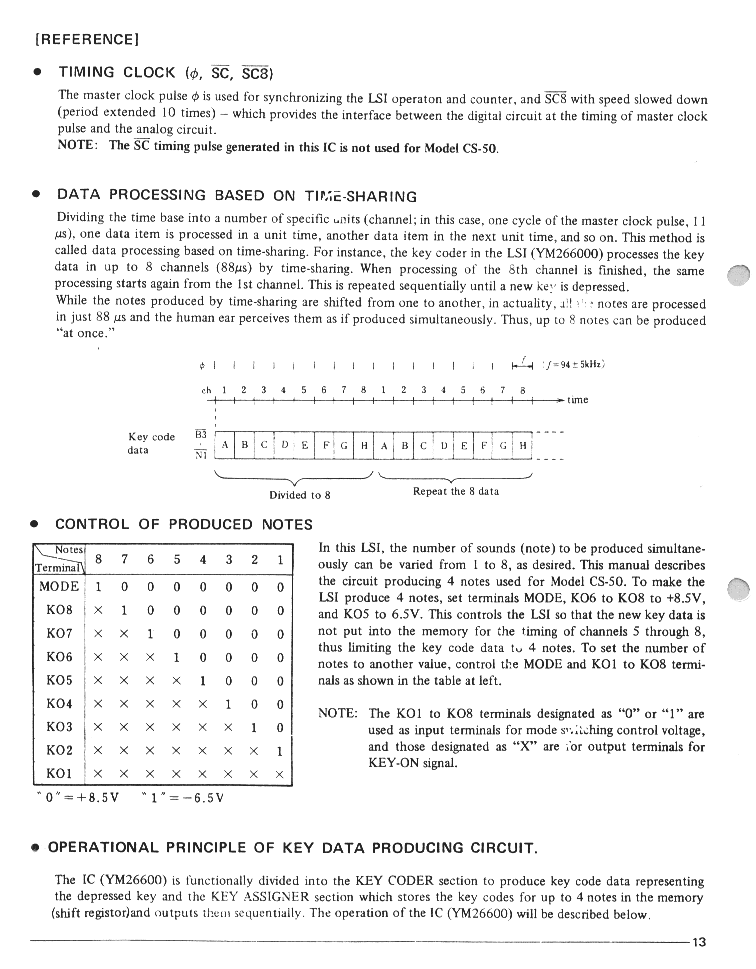

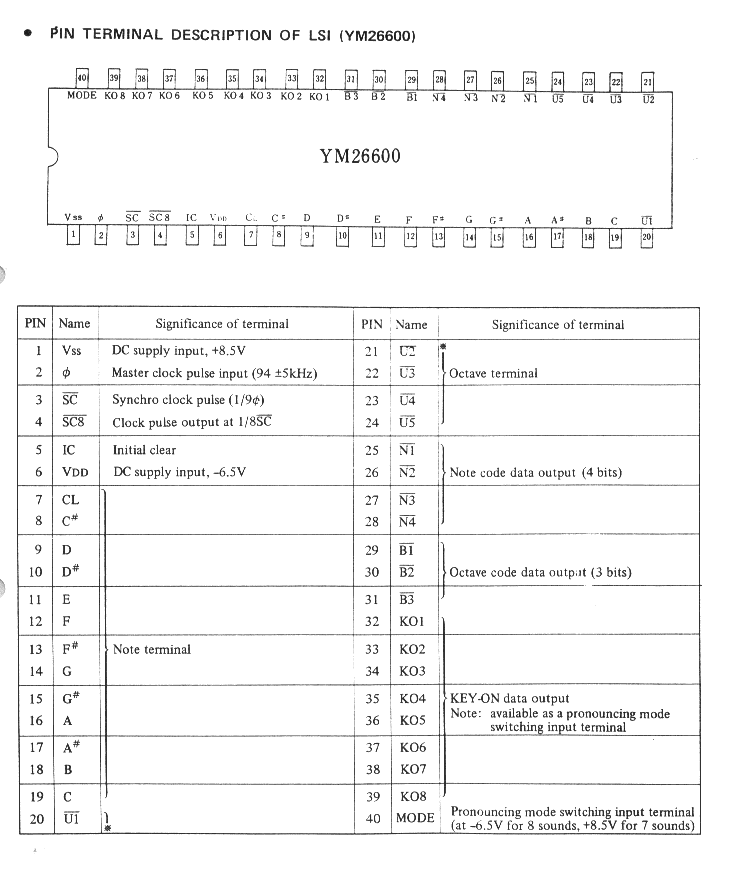

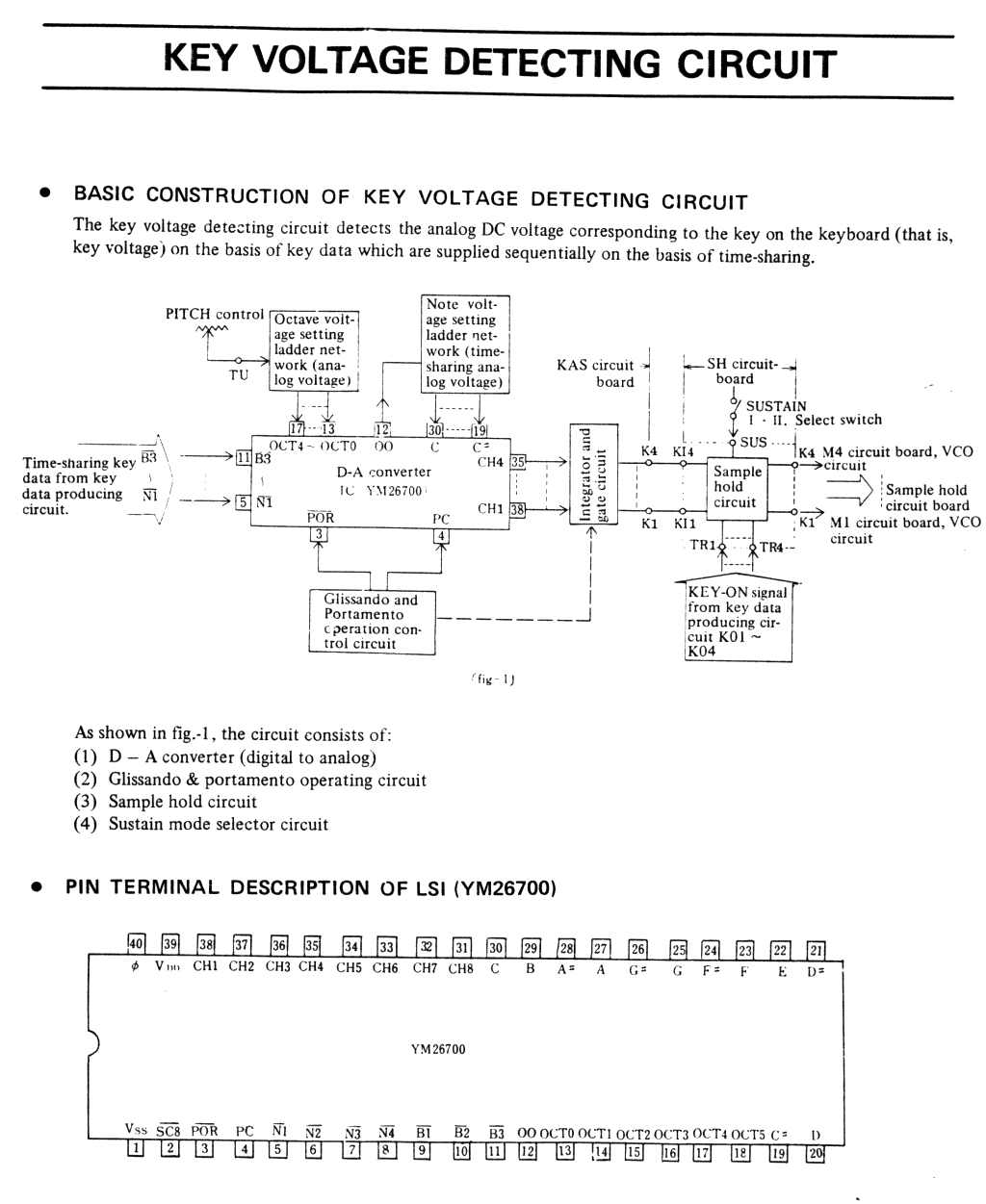

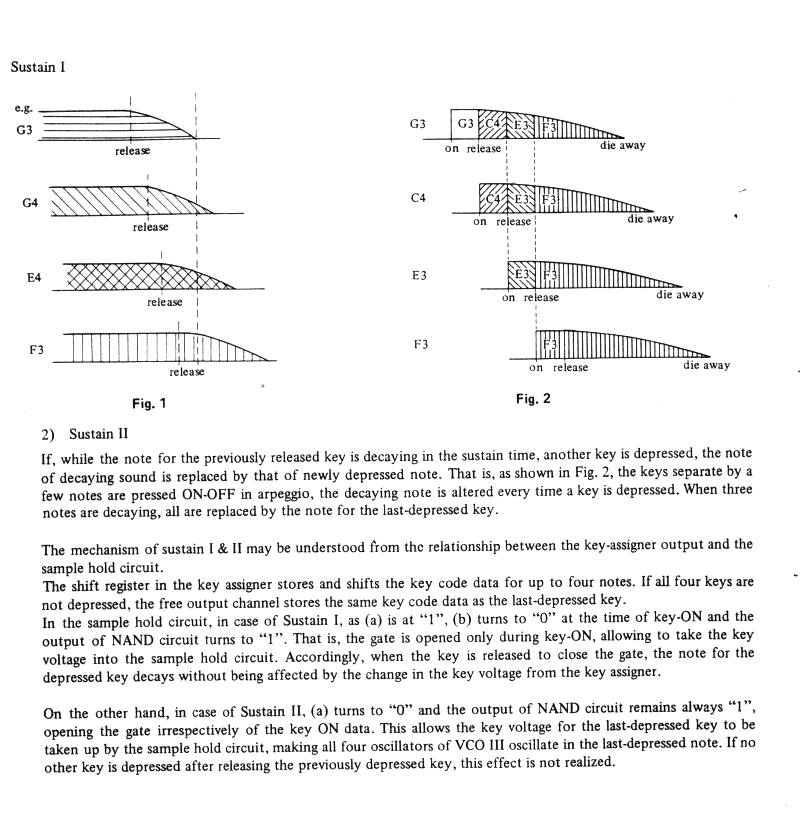

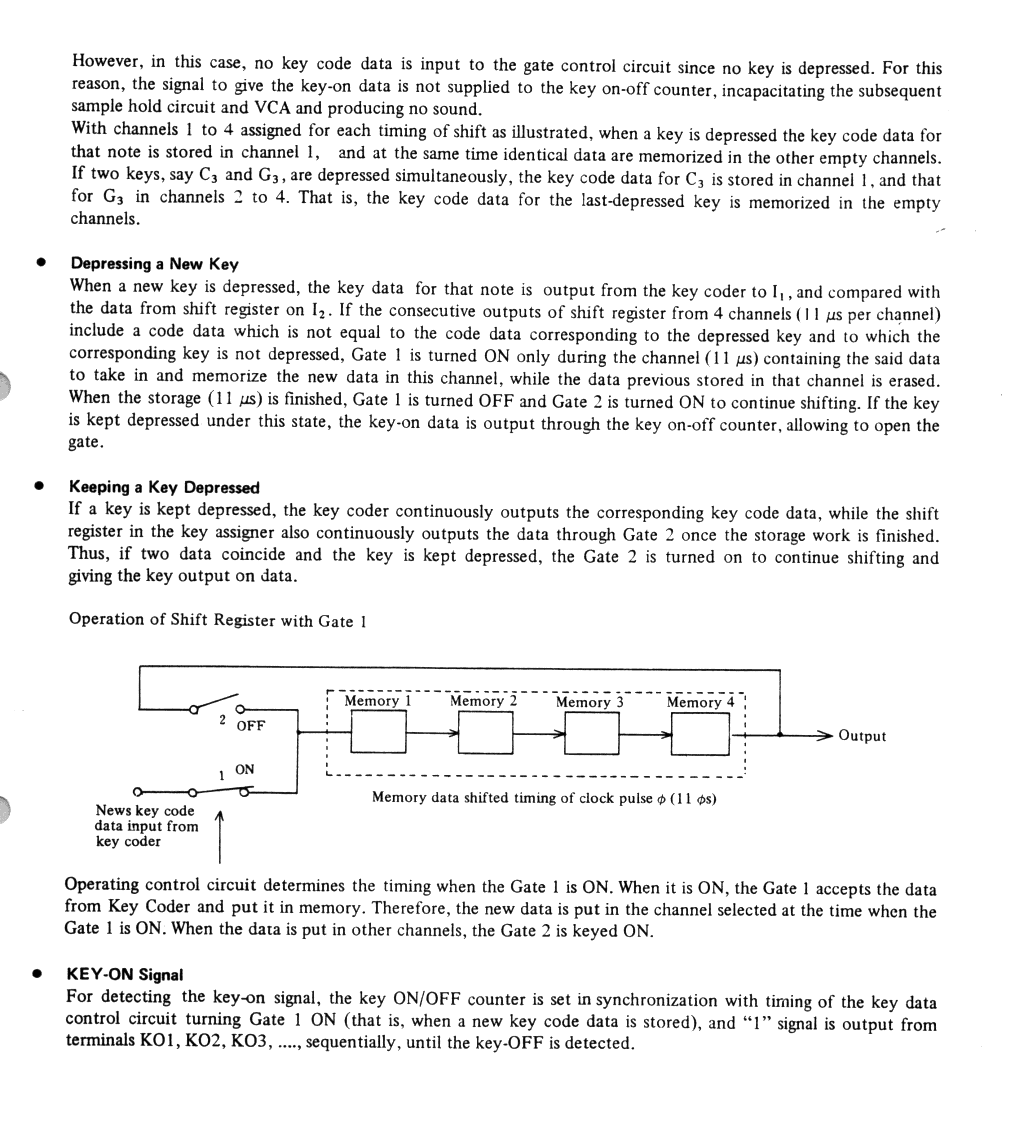

from Yamaha's CS-Series Synthesizer Servicing Guide.  Thanks to Peter Forrest for providing this rare information. Thanks to Scott Rider for providing the extra web space.

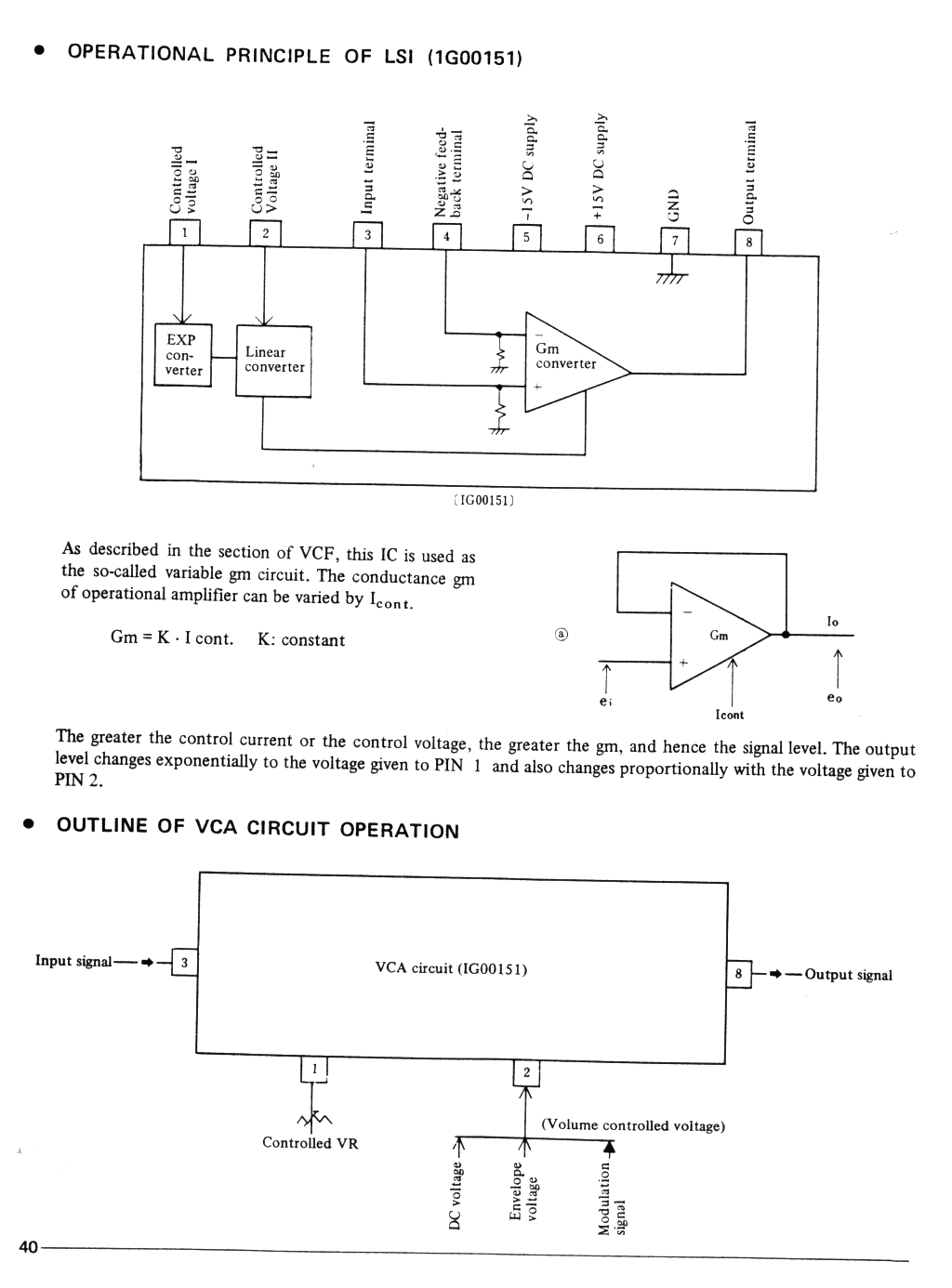

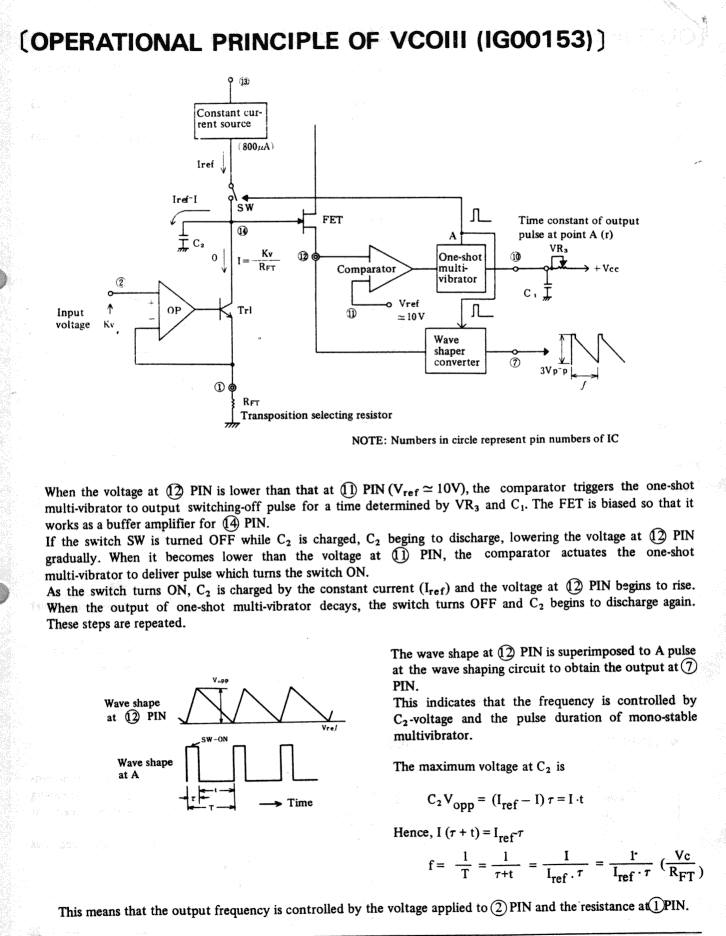

VCO vco VCF vcf VCA p40 / p41 KAS p11 / p12 / p13 / p14 / p15 / p16 / p17 / p18 / p19 / p20 / p21 / p22 / p23 / p24 / p25 / p26

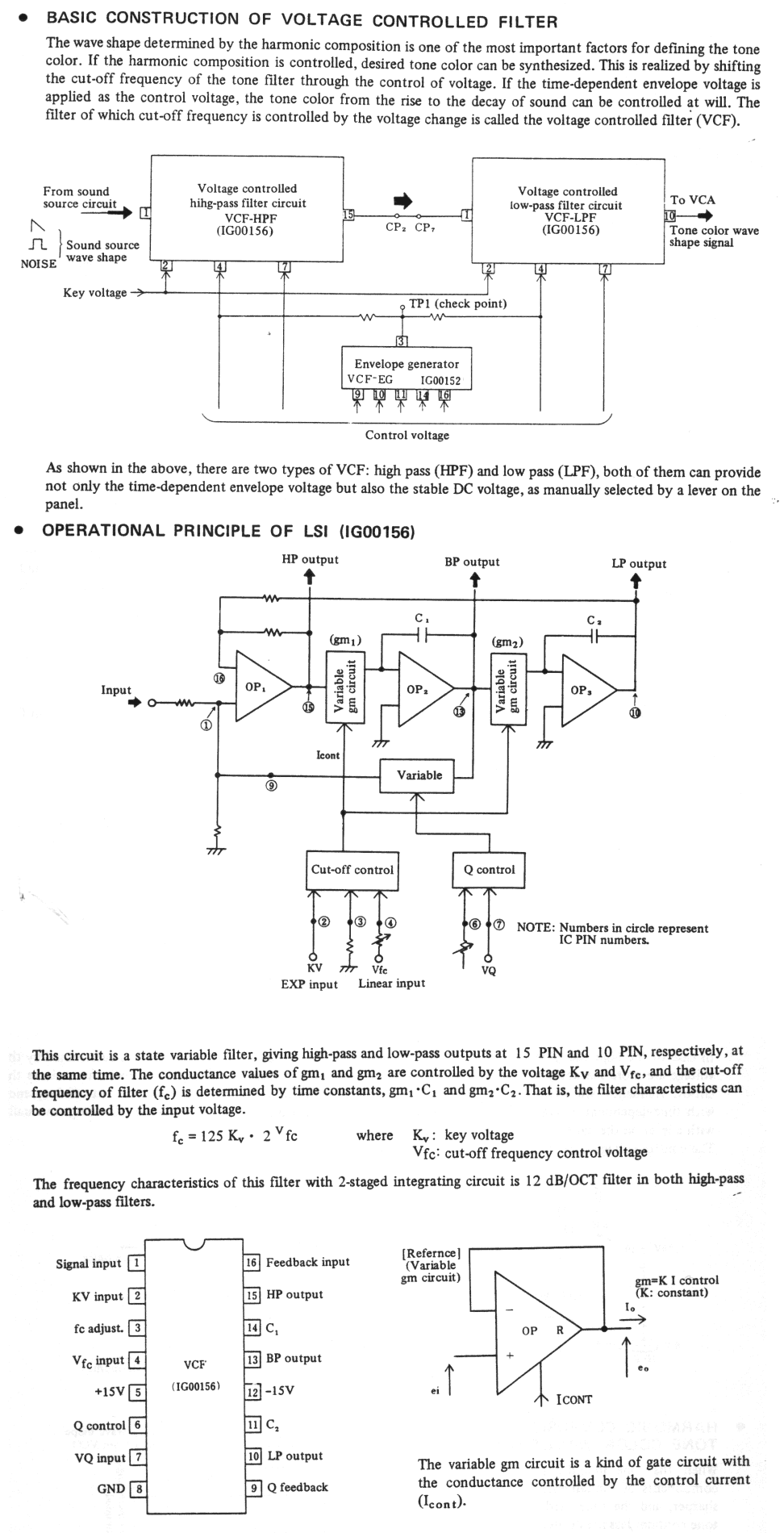

What's going on in the Filter ?
new: Analyzing the CS-80 VCF
  Vibrato Implementation?
new: Just a guess about the vibrato

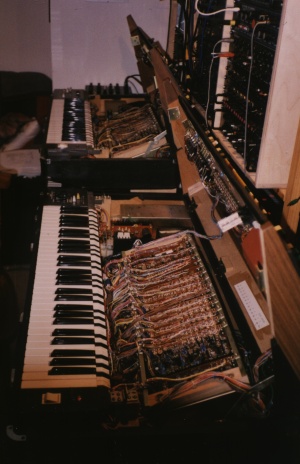

CS-60 and CS-50 side by side
